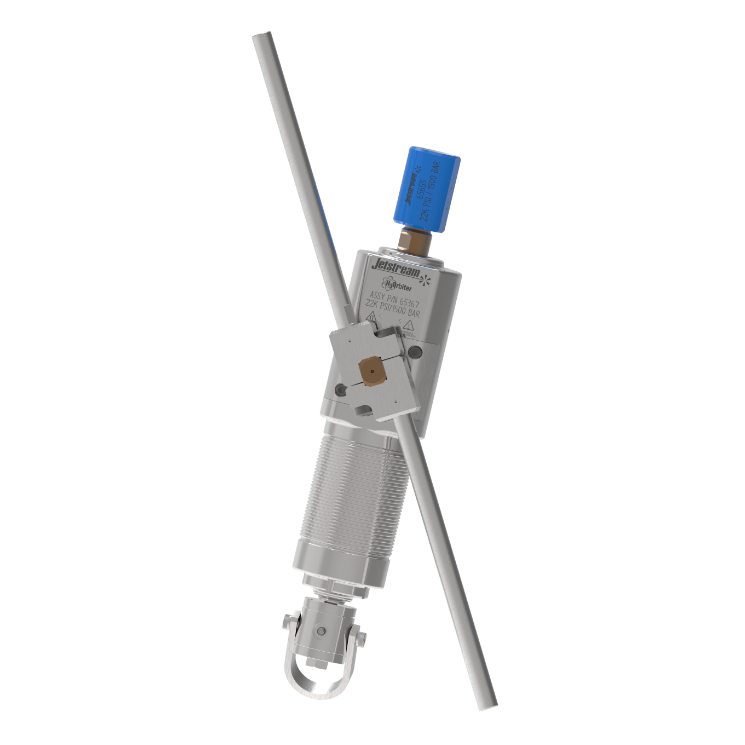

H3Orbiter™

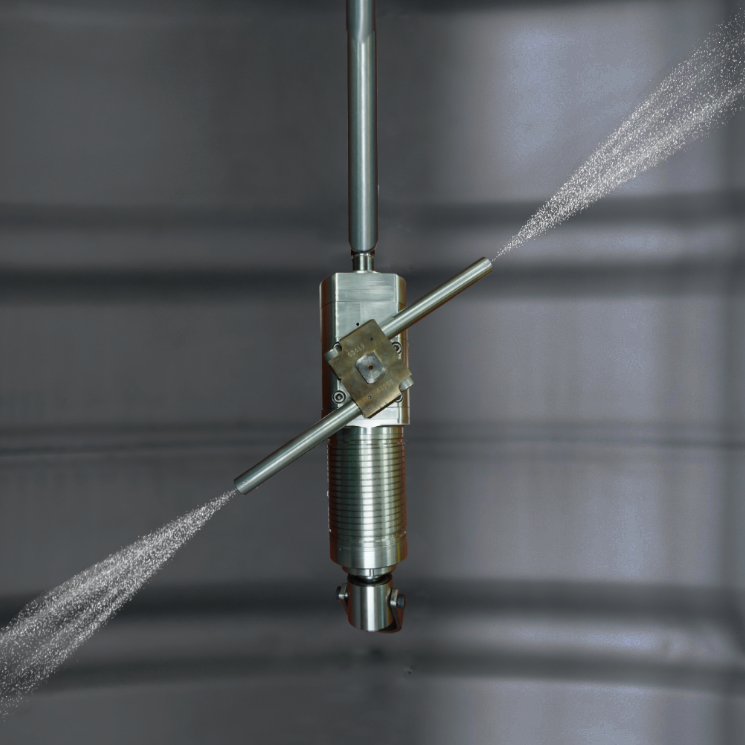

The H3Orbiter is a 3D waterjetting tool designed to effectively and efficiently clean tanks and vessels. The rotation of the nozzles and body allow the tool to perform a complete 3-Dimensional clean at pressures up-to 22,000 psi (1500 bar).
Key Features:
- Rate to 1500 bar
- Made from stainless steel
- Enhanced components for longer life
- Rotational speed controlled by a maintenance-free magnetic brake
- Four manifolds offered for application precision: High (50 to 80 gpm), Medium (28 to 55 gpm), Low (16 to 30 gpm), and Extra Low Flow (10 to 18 gpm)
- Wide range of accessories are available including cage centralizers and extensions.
- For pipe cleaning, the H3Orbiter can be placed in a centralizer with an optional kick plate. When installed with the centraliser, the kick plate allows for self generated forward movement with each 180° rotation of the manifold.
