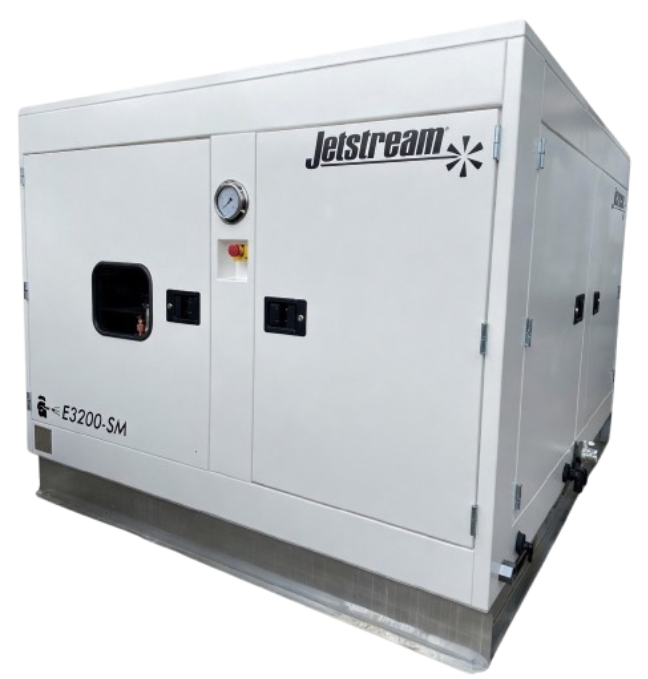

E3200-SM
The E3200-SM is a versatile, high-performance electric-driven high-pressure water jetting unit designed for various applications. It is available in three pressure configurations.
Featuring the Jetstream UNx3000 Series Bareshaft Pump and a belt drive system, the E3200-SM includes Primary and Secondary Rupture Disc Holders and manually operated By-Pass Valve within the standard configuration.
Powered by an efficient 160kW motor and controlled via an easy-to-use control panel, the E3200-SM can operate at pressures up to 2758 bar.
Performance Specifcations
Performance Specifcations
| Model | Plunger Size | PSI | BAR | L/min | GPM | kW | HP |
|---|---|---|---|---|---|---|---|
| 3015 | #12 | 11,600 | 800 | 96 | 21.3 | 149 | 200 |
| 3015 | #10HF | 15,000 | 1,034 | 77 | 16.93 | 149 | 200 |
| 3020 | #9 | 20,000 | 1,378 | 55 | 12.09 | 149 | 200 |
| 3040 | #7HF | 36,000 | 2,500 | 27 | 5.9 | 149 | 200 |
| 3040 | #7 | 40,000 | 2,758 | 23 | 5.05 | 149 | 200 |
Performance Specifcations
| Model | Plunger Size | PSI | BAR | L/min | GPM | kW | HP |
|---|---|---|---|---|---|---|---|
| 3015 | #12 | 11,600 | 800 | 96 | 21.3 | 149 | 200 |
| 3015 | #10HF | 15,000 | 1,034 | 77 | 16.93 | 149 | 200 |
| 3020 | #9 | 20,000 | 1,378 | 55 | 12.09 | 149 | 200 |
| 3040 | #7HF | 36,000 | 2,500 | 27 | 5.9 | 149 | 200 |
| 3040 | #7 | 40,000 | 2,758 | 23 | 5.05 | 149 | 200 |
Physical Specifications
Physical Specifications
Height (mm)1655
Width (mm)2050
Length (mm)2440
Physical Specifications
Height (mm)1655
Width (mm)2050
Length (mm)2440
