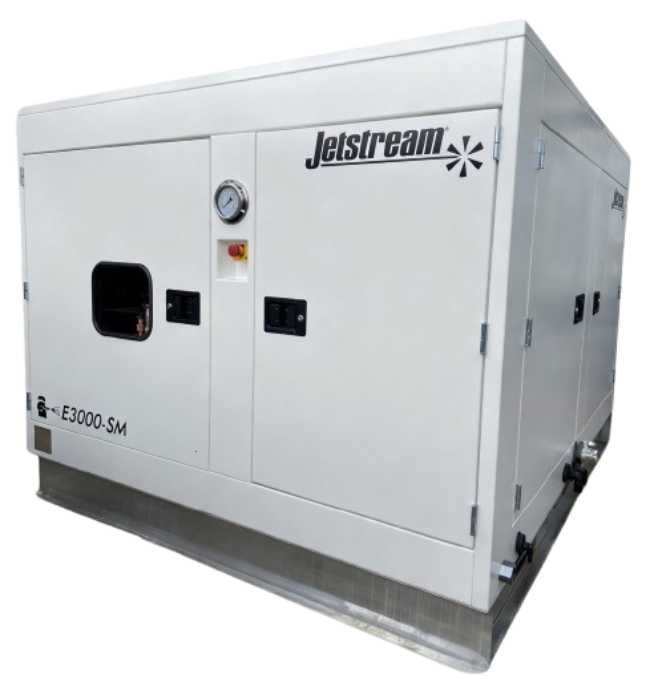

E3000-SM
The E3000-SM is a versatile, high-performance electric-driven high-pressure water jetting unit designed for various applications. It is available in three pressure configurations.
Featuring the Jetstream UNx3000 Series Bareshaft Pump and a belt drive system, the E3000-SM includes Primary and Secondary Rupture Disc Holders and manually operated By-Pass Valve within the standard configuration.
Powered by an efficient 110kW motor and controlled via an easy-to-use control panel, the E3000-SM can operate at pressures up to 2758 bar.
Performance Specifcations
Performance Specifcations
| Model | Plunger Size | PSI | BAR | L/min | GPM | kW | HP |
|---|---|---|---|---|---|---|---|
| 3015 | #11 | 10,000 | 689 | 83 | 18.25 | 110 | 150 |
| 3015 | #9 | 15,000 | 1,034 | 59 | 12.97 | 110 | 150 |
| 3020 | #8 | 20,000 | 1,379 | 42 | 9.2 | 110 | 150 |
| 3040 | #6 | 40,000 | 2,758 | 19 | 4.17 | 110 | 150 |
Performance Specifcations
| Model | Plunger Size | PSI | BAR | L/min | GPM | kW | HP |
|---|---|---|---|---|---|---|---|
| 3015 | #11 | 10,000 | 689 | 83 | 18.25 | 110 | 150 |
| 3015 | #9 | 15,000 | 1,034 | 59 | 12.97 | 110 | 150 |
| 3020 | #8 | 20,000 | 1,379 | 42 | 9.2 | 110 | 150 |
| 3040 | #6 | 40,000 | 2,758 | 19 | 4.17 | 110 | 150 |
Physical Specifications
Physical Specifications
Height (mm)1655
Width (mm)2050
Length (mm)2440
Physical Specifications
Height (mm)1655
Width (mm)2050
Length (mm)2440
